KTM 150 EXC TPI 2022

The KTM 150 EXC TPI is fitted with a robust 6-speed transmission made by PANKL Racing Systems. The gears are made of a strong, forged raw material, ensuring the highest durability and reliability level. This guarantees superior reliability. Another highlight of the 150 EXC TPI transmission, is the no-dirt gear shifter. Similar to the footpeg […]

To accommodate the power requirements of the engine management system, the TPI models are fitted with a powerful 196 W alternator and a voltage regulator. The same as can be found on the EXC-F 4-stroke models.

The TPI engine is fitted with a 39 mm throttle body made by Dell`Orto. The airflow is regulated by a butterfly connected with a twin-cable throttle cam, which is operated by the handlebar throttle assembly. A throttle position sensor provides airflow data to the control unit. The idle system allows the idle speed to be […]

Pre-mixing 2-stroke fuel is a thing of the past for KTM EXC TPI owners. The 2-stroke range is fitted with an oil tank featuring flexible mountings, which greatly improve durability and reliability. In addition, a mesh filter helps prevent dirt getting into the oil pump. Mounted below the oil tank, the oil pump delivers the […]

When it comes to power delivery and performance, the new exhaust plays a key role and packs a punch that is hard to beat. The pipe is produced with the latest 3-D stamping technology and has an optimized shape. It works perfectly with the TPI engine, producing excellent enduro-specific performance with impressive bottom end power. […]

The engine management system (EMS) of the TPI models features a control unit located below the seat. The ECU defines the ignition timing and amount of fuel to inject is based on several sensor readings such as intake air pressure, throttle position and water temperature plus a new additional ambient air pressure sensor. Thanks to […]

The KTM 150 EXC TPI cylinder has a bore of 58mm and with the aid of a sophisticated power valve, provides really smooth and controllable power characteristics. For the EFI application the cylinder features two lateral domes which hold the fuel injectors that supply fuel to the rear transfer ports. The downstream injection guarantees excellent […]

The compact engine cases are manufactured using a high pressure die-cast production process which helps with weight reduction, while retaining strength and durability. The design allows for optimal shaft arrangements close to the center of gravity, resulting in ideal mass centralization and easier ride-ability. The engine covers feature a smart surface structure which reduces wear […]

Maintaining the optimal engine temperature is crucial to ensuring consistent horsepower throughout the ride. The KTM 150 EXC TPI features radiators which are mounted close to the center of gravity and match the design of the shrouds perfectly, in order to achieve perfect ergonomics. By using CFD technology (computational fluid dynamics) together with a clever […]

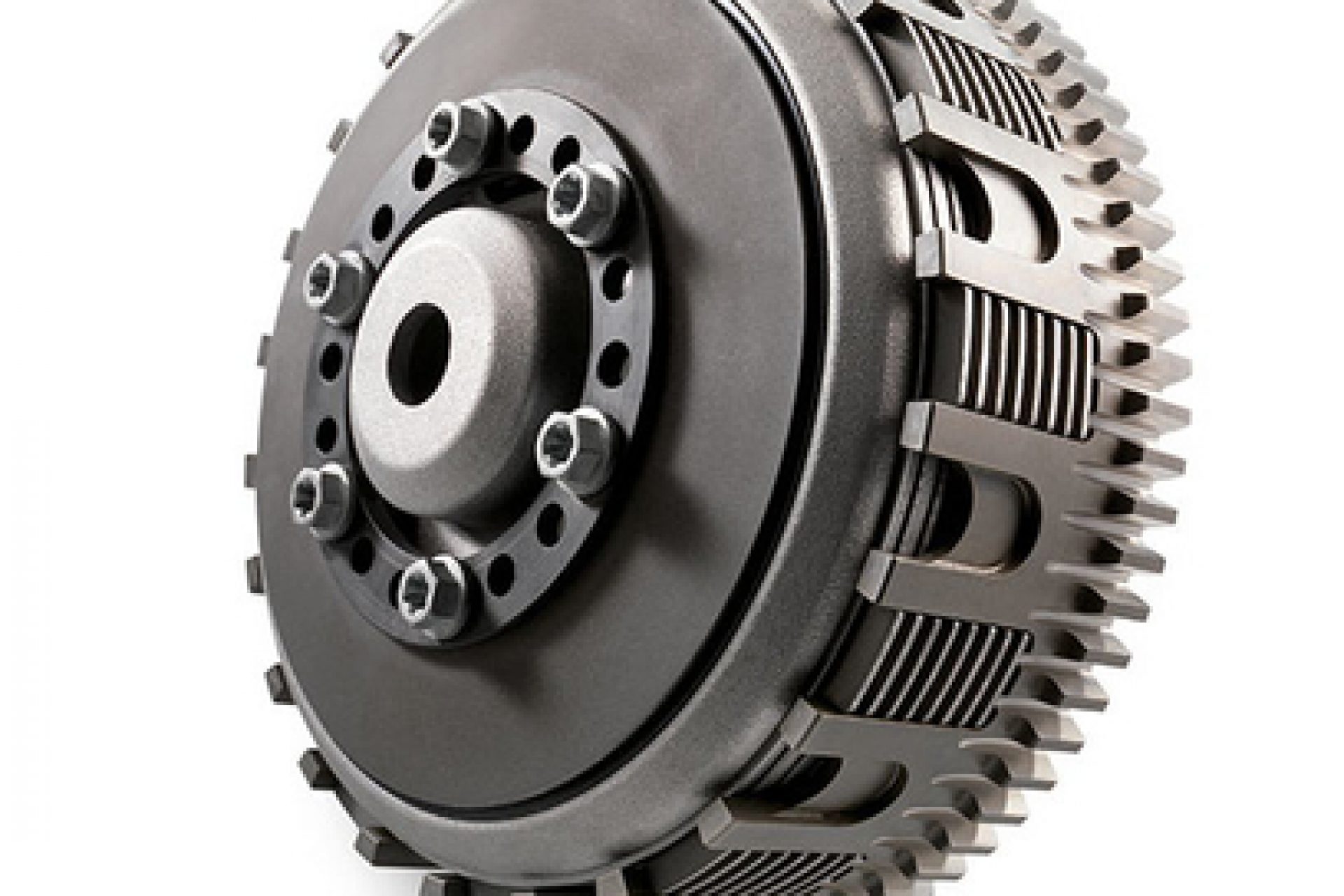

The 150 EXC TPI is fitted with a DS (diaphragm steel) clutch. It features a one-piece clutch basket and primary gear made of high-strength billet steel. Its compact rivet-less design guarantees unbeatable reliability. The clutch is fitted with extremely heat-resistant steel carrier friction discs which ensure excellent disengagement of the clutch and are pre-tensioned by […]

Say goodbye to numb feet and hands. This engine design allows the implementation of a lateral balancer shaft in order to keep the vibrations to a minimum. You know what that means: more comfort, less fatigue, bigger smiles.

KTM uses lightweight, CNC-machined hubs and high-end GIANT rims on all Enduro models, guaranteeing maximum stability and minimum weight. The aluminum spoke nipples feature an innovative design, which conveniently reduces the frequency with which the spokes need to be tightened.

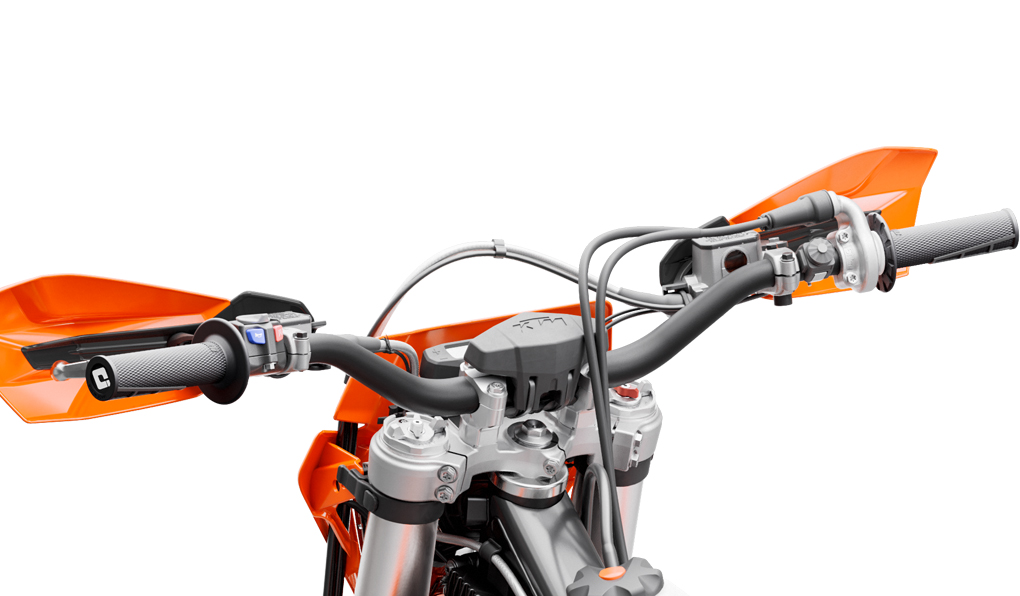

Fitted with forged triple clamps with an offset of 22mm, ensuring a solid grip of the fork and precise handling. The handlebar is adjustable forwards and backwards over 4 positions, so the EXC TPI will fit you like your favorite gloves.

The KTM 150 EXC TPI’s one-piece aluminum swingarm is manufactured using a gravity die-cast production process, offering exceptional strength at the lowest possible weight. The single-component casting process offers low weight, perfect flex behavior and also allows for a large number of geometry solutions.

The WP XPLOR shock absorber is the key element on the proven PDS rear suspension design (progressive damping system), where the shock is directly linked to the swingarm without an additional linkage system. This keeps weight lower and reduces the chances of hooking on rocks. Optimal enduro-specific damping progression is achieved by using a second […]

All models in the EXC range are fitted with lightweight polyethylene tanks improving the ergonomics. The ¼‐turn bayonet filler cap makes for quick and easy closure. Manufactured using see‐through plastic, you will always be able to see how much fuel remains at a glance. It is fitted with an integrated fuel pump system and a […]

All EXC models are fitted with the latest 48 mm diameter WP XPLOR upside-down forks, featuring a split fork design developed by WP and KTM. While each side is fitted with springs, they have separate damping functions. Compression damping is on the left and the rebound on the right. Both can easily be adjusted via […]

These high-tech Brembo babies are combined with lightweight Wave brake discs. You couldn’t brake any harder or with better feel on an offroad motorcycle.

The airbox on the KTM 250 EXC TPI ensures optimal flow dynamics, and together with the intake snorkels, results in optimal power and throttle response. Despite the obvious performance enhancements, the design also offers maximum protection against soiling of the air filter. The large twin-Air air filter is mounted on a cleverly designed stiff cage […]

The EXC range features a lightweight seat that provides great ergonomics and seat comfort thanks to the high foam padding. The seat is conveniently fixed to the bike using one long, lateral screw, making it safe and easy to handle.

Sophisticated ´No Dirt´ footpegs prevent smudging up the pegs, even when digging in deep ruts. The pegs on the Enduro models are 6mm higher than the ones used on SX models, which benefits ground clearance. But you can swap them at will.
