KTM 150 SX 2020

Produktinfo

WIDE OPEN TRACK ATTACK

With the agility of a 125 and a healthy dose of extra power, the KTM 150 SX is a lively package ready to take on the 250 cc 4-strokes. From within its dynamic lightweight chassis, the compact engine produces class-leading torque and power. Everything about this motorcycle screams high-performance fun and it goes into battle as the ultimate on-track competitor.

Motor og eksos

Motor og Eksos

KTM 2-strokes have been tearing up MX tracks for decades and are undoubtedly the fastest on the track today. Thanks to years of ongoing development, these engines are the benchmark in performance and technology, with the perfect combination of power, weight and control. For 2020, small, but important refinements have been made, resulting in improved power delivery and reliability and through its melodic high-RPM screams, KTM150 SX continues to deliver thrilling high-performance harmonics.

TRANSMISSION

The KTM 150 SX is fitted with a robust 6-speed transmission. The gear ratios, which featured improvements and reinforcements, were carried over from the predecessor. The gearbox features a new drive shaft which uses a screw for pinion fixation and diaphragm spring instead of a circlip, ensuring safer pinion fixation. Another highlight of the 125 […]

IGNITION

All 2-stroke models feature a CDI control unit with advanced hardware that improves the starting behavior of the engine. The ignition curves remain unchanged.

EXHAUST

When it comes to power delivery and performance, the exhaust developed specifically for this bike plays a key role and packs a punch that is hard to beat. In addition, its special shape provides slimmer ergonomics while still operating safely within the noise limits for racing.

ENGINE

The pure exhilaration that this bike’s engine delivers warranted continued production. As it shares many of its key components with the class-leading 125, the cylinder, cylinder head and piston unit can now also be fitted on a 125cc engine base, converting it to a 150 SX without having to replace the crankshaft. Compact and powerful, […]

CYLINDER

At the heart of the 150cc engine is a 58 mm bore cylinder. It features an innovative power valve unit with a sophisticated mechanism designed for the lateral support exhaust ports. The exhaust port layout enhances engine performance, while the precise machining of the upper contour of the exhaust port ensures accurate port timing. The […]

CRANKSHAFT

The crankshaft has a 72 mm stroke that produces the optimal torque and revs. It has been ideally balanced and with the counter balancer shaft, results in minimum vibration. The crankshaft is placed in the perfect position to centralize mass, contributing to better agility and handling.

CRANKCASES AND ENGINE COVERS

The lightweight engine cases are manufactured using a high pressure die-cast production process, keeping wall thickness to a minimum while retaining strength and durability. The design allows for a high crankshaft position which is located near to the center of gravity, resulting in optimal mass centralization and easier rideability. The engine body is extremely compact, […]

COOLING

Maintaining the optimal engine temperature is crucial to ensuring consistent horsepower throughout the ride. The KTM 150 SX features radiators which are positioned for a lower center of gravity. Their design matches the shrouds perfectly and offers a great slim feel to the ergonomics. By using CFD technology (computational fluid dynamics) together with a clever […]

CARBURETOR

The KTM 150 SX is fitted with a MIKUNI TMX 38mm flat slide carburetor featuring settings that were adapted to suit the new airbox developed in 2019. For 2020, reworked reeds for intake reed block provide further improvements in function, sealing and reliability, ensuring the whole system is always providing smooth, controllable power throughout the […]

Chassi

Chassi

The KTM 150 SX is just made to be ridden aggressively and features a chassis that delivers on the rider’s demanding expectations. The lightweight, high-tech steel frame is designed to respond instantly to rider input and provide accurate rider feedback. The flex characteristics help the bike to soak up those big hits while also delivering excellent agility and high-speed stability. For 2020, the suspension features improved damping characteristics. The reworked settings offer a slightly softer, more comfortable feel that, together with the frame, allows the rider to be 100% in charge of the ride.

WHEELS

KTM uses lightweight, CNC-machined hubs and high-end Excel rims on all SX models, guaranteeing maximum stability and minimum weight. The aluminum spoke nipples feature a design that conveniently reduces the frequency with which the spokes need to be tightened. The wheels are fitted with the latest DUNLOP GEOMAX MX 3S tires, delivering maximum grip and […]

TRIPLE CLAMP

All KTM SX models feature top quality, CNC-machined triple clamps which have become a KTM trademark. The triple clamp has a precisely calculated stiffness and offset (22 mm offset for all models) to match the flex characteristics of the frame and fork. The result is a front end that works in perfect harmony, contributing positively […]

SWINGARM

The one-piece swingarm is manufactured using a gravity die-cast production process for exceptional strength at the lowest possible weight. It offers a wide range of adjustment for the rear wheel, allowing for a shorter wheelbase on tighter, twisty tracks, or a longer wheelbase for greater stability on longer, more choppy tracks. The swingarm’s chain measurement […]

REAR SUSPENSION

All KTM SX models feature a WP XACT monoshock, which has been developed to work as a complete unit with the entire frame and swingarm architecture, as well as the linkage system and the WP XACT fork. It features high-quality machined and anodized components, which add a touch of class and give it appeal beyond […]

FUEL TANK

All models in the KTM SX range are fitted with lightweight polyethylene fuel tanks. The shape of the fuel tank allows for slim ergonomics without compromise to the 7 liter fuel capacity. The filler cap has an inside thread that makes for easy and reliable closure.

FRONT SUSPENSION

All full-size KTM SX models are fitted with the super-lightweight WP XACT fork with AER technology. It is a 48 mm USD air-sprung fork with separate functions in each fork leg, with damping functions on the right side and the air spring on the left. The left leg features a two-chamber system with a capsuled […]

FRAME

The frame is professionally crafted from hydro-formed chromium molybdenum steel tubes that are robot welded, ensuring the highest levels of consistent quality. The stiffness has been precisely tailored for the most dynamic handling, and works in perfect harmony with the suspension to provide nimble agility without losing high-speed stability. The frame also features “no dirt” […]

BRAKES

High-tech BREMBO brakes have always been standard equipment on all KTM motocross bikes. Combined with lightweight wave discs, the renowned system provides the highest level of braking efficiency, enabling you to out-brake the competition.

AIRBOX

The airbox on the KTM 150 SX ensures optimal flow dynamics, and together with its intake snorkels, leads to maximum power and quick throttle response. Despite the obvious performance advantages, the design also offers maximum protection against soiling of the air filter. The large TWIN AIR air filter is mounted on a cleverly designed stiff […]

Ergonomi og komfort

Ergonomi og komfort

When it comes to attacking the track, chasing faster times with every lap, there is no better weapon than the KTM 150 SX. Its performance-inspired design allows the rider to shift his weight quickly and easily, working in perfect harmony with the motorcycle. KTM has focused extensively on creating bodywork and ergonomics that are shaped for high-level performance, ensuring a riding position that offers the best control. A rider’s main interaction with the bike is through the bodywork, footpegs and handlebars. No compromises were made in these important areas and only the best quality products and designs can be seen on all SX models. KTM produces incredibly fast motorcycles and every effort goes into making sure the rider has the ability to confidently control it.

SEAT

All KTM SX models feature a seat that perfectly matches the range’s dynamic performance-oriented ergonomics. The seat cover features silicone strips that provide better feel and grip for the rider. The seat is conveniently fixed to the bike using one long, lateral screw, making it safe and easy to handle.

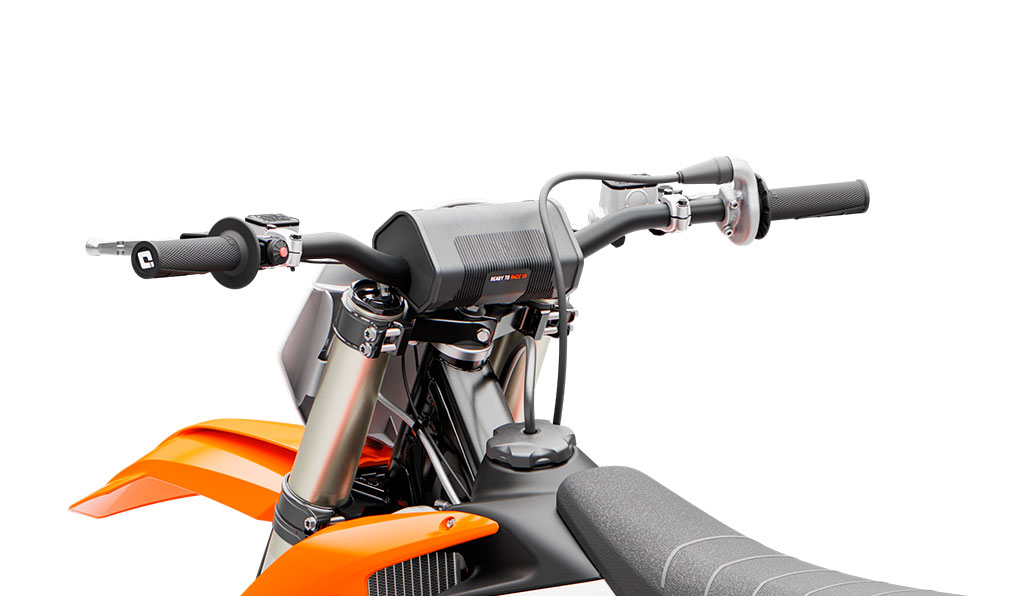

HANDLEBAR

All full-size KTM SX models are equipped with the same high-strength aluminum tapered handlebar, made by NEKEN. The handlebar is fixed in rubber damped mountings, which allow for two different positions. The handlebars come standard with an ODI vulcanized grip on the right side and a comfortable ODI lock-on grip, which does not require any […]

FOOTPEGS

Sophisticated ´no-dirt´ footpegs prevent smudging up the pegs, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the KTM 2018 EXC models, which are 6mm higher than the SX versions.

Bodywork og dekaler

Bodywork og dekaler

Those who ride a KTM 150 SX thrive on the extra power it delivers, while still having the dynamic agility and feel that a 125 cc offers. These riders are always pushing themselves and their machines to the limit and need the freedom of movement to position the bike where they want it on the track. With input from KTM factory riders, KTM R&D as well as Kiska Design, the bodywork on the entire SX range achieves perfect harmony between rider and bike, providing the maneuverability the rider expects and the control they need. The bodywork also contains intelligent design elements, like the I-beam structure on the front and rear fenders, which guarantee maximum stability without adding any extra weight.

DECALS

The new graphics suit the aggressive nature of the bike and further enhance the high performance look of the bodywork.

Programvare og elektronikk

Programvare og elektronikk

Absolute performance purity is the name of the game when it comes to the KTM 150 SX. Undiluted 2-stroke simplicity, with an hour meter to keep a check on how long you’ve been shredding and an optional rev counter to assist with perfect setup.

Tekniske detaljer

TECH DETAILS

Engine
Design
1-cylinder, 2-stroke engine
Displacement
143.9 cm³
Bore
58 mm
Stroke
54.5 mm
Starter
Kickstarter
Transmission
6-speed
Clutch
Multi-plate clutch, Brembo hydraulics
EMS
Kokusan
Chassis
Frame design
Central double-cradle-type 25CrMo4 steel
Front suspension
WP XACT-USD, Ø 48 mm
Rear suspension
WP XACT Monoshock with linkage
Suspension travel (front)
310 mm
Suspension travel (rear)
300 mm
Front brake
Disc brake
Rear brake
Disc brake
Front brake disc diameter
260 mm
Rear brake disc diameter
220 mm
Chain
5/8 x 1/4″
Steering head angle
63.9 °
Ground clearance
375 mm
Seat height
950 mm
Tank capacity (approx.)
7.5 l
Weight READY TO RACE (without fuel)
87.5 kg
