KTM 450 SX-F 2020

Produktinfo

Power Supremacy

The championship winning KTM 450 SX-F is a proven formula that is the industry benchmark. For 2020, this machine continues to deliver superior performance and easy handling. It features an extremely compact, single overhead camshaft cylinder head and together with the efficient electronic fuel injection, it pushes out an unrivalled 63hp in the most effective way possible. The KTM 450 SX-F is simply the fastest Motocross bike out on the track.

Motor og eksos

Motor og Eksos

The 450cc engine is the ultimate powerhouse when it comes to KTM’s competitive motocross range. Its compact, lightweight design features a single overhead camshaft cylinder head, fueled by the latest electronic injection system. This enables the impressive 63hp to be distributed extremely efficiently throughout the rev range. Even with its super-beneficial electric starter this model is still the lightest 450 cc engine on the MX market.

TRANSMISSION

The 2019 KTM 450 SX-F uses a reworked transmission that further improves durability. There was no need to change the gear ratios as they have been perfectly matched to the power delivery of the large displacement engine. All four-stroke engines are fitted with a gear sensor, which provides the option of different engine characteristics for […]

HANDLEBAR MAP SELECT SWITCH

Within easy reach of the left grip on all four-stroke models, is a multifunctional handlebar map switch, which features the innovative control functions; traction control; launch control and alternative power curves (standard <-> advanced). The TRACTION CONTROL is a unique feature which has a new setting for 2019. It guarantees more efficient traction and better […]

EXHAUST

When it comes to power delivery and performance, the exhaust on all 4-stroke models plays a key role and packs a punch that is hard to beat. It features a model specific header pipe with an advanced resonator called FDH (Flow Design Header), which is a small chamber around the pipe. The design allows the […]

ENGINE MANAGEMENT SYSTEM

The state-of-the-art Keihin Engine Management System, with electronic fuel injection, features a new 44 mm throttle body. The injector position is unique and guarantees optimal atomization of the fuel and air on the way to the combustion chamber, resulting in instant response and maximum performance when opening the throttle. There are also separate systems for […]

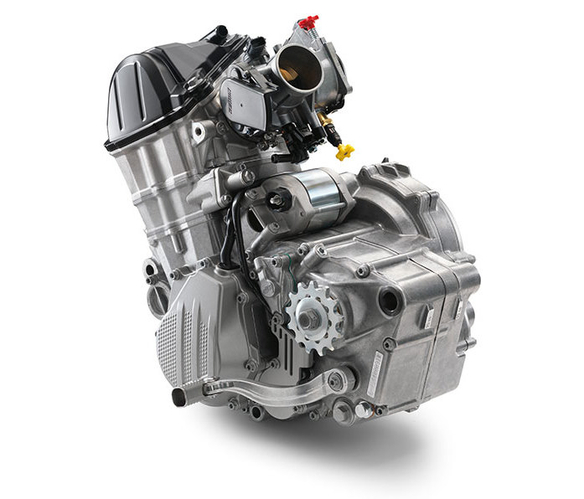

ENGINE

The 450cc engine is the ultimate powerhouse when it comes to KTM’s competitive motocross range. Its compact, lightweight design features a single overhead camshaft cylinder head, fueled by the latest electronic injection system. This enables the impressive 63hp to be distributed extremely efficiently throughout the rev range. Even with its super-beneficial electric starter this model […]

E-STARTER

The standard electric starter on the KTM 450 SX-F uses a proven starter drive and a strong starter motor made by Mitsuba. As demonstrated time and time again, it provides quick and reliable starting, saving you precious time and energy when you need it most.

Cylinder head

The 450 SX-F is fitted with a newly developed SOHC (single overhead camshaft) cylinder head which is much more compact, 15 mm lower and 500 gr lighter. The changes have further improved mass centralization, elevating handling to new levels of excellence. The new overhead camshaft is also closer to the center of gravity and features […]

CRANKSHAFT

The KTM 450 SX-F’s crankshaft is located in an ideal position close to the center of gravity, contributing to better mass centralization. It utilizes a short connecting rod, which allows for a compact motor design and a snappier power delivery. The whole unit is extremely well-balanced, with the perfect amount of inertia for optimal traction […]

CRANKCASES AND ENGINE COVERS

The compact engine cases are manufactured using a high pressure die-cast production process that helps with weight reduction, while retaining strength and durability. The design allows for optimal shaft arrangements close to the center of gravity, resulting in better mass centralization and easier ride-ability. Plus, the new engine covers feature a smart surface structure that […]

COOLING

Maintaining the optimal engine temperature is crucial to ensuring consistent horsepower throughout the ride. The KTM 450 SX-F features newly designed radiators which are mounted 12 mm lower than the predecessors. This lowers the center of gravity and matches the design of the new shrouds perfectly, in order to achieve perfect ergonomics. By using CFD […]

CLUTCH

The KTM 450 SX-F is fitted with the extremely durable, KTM-developed DDS clutch (damped diaphragm steel), with a wear-free steel basket and heat resistant clutch plates. It uses a diaphragm spring instead of the usual coil springs, which results in considerably easier clutch action. The diaphragm spring is also compact enough to allow for a […]

BALANCER SHAFT

The multifunctional side mounted counter balance shaft masterfully balances all the oscillating forces, while also driving the water pump. It effectively keeps engine vibrations to a minimum, resulting in the smoothest ride even at the highest engine speeds.

Chassi

Motor og Eksos

The KTM 450 SX-F delivers metal twisting torque and demands a strong frame to handle its immense power and speed. A new lightweight, high-tech steel frame was developed for the 2019 range and the proven formula carries over to the 2020 model. It features refined flex characteristics that ensure the bike soaks up those big hits while also maintaining excellent agility and high-speed stability. The chassis also features additional innovative elements, like “no dirt” foot pegs and brackets for mounting an optional composite skid plate. For 2020, the suspension features improved damping characteristics. The reworked settings offer a slightly softer, more comfortable feel that, together with the dynamic, performance-oriented chassis, contributes to an intuitive, high-performance ride like no other.

WHEELS

KTM uses lightweight, CNC-machined hubs and high-end Excel rims on all SX models, guaranteeing maximum stability and minimum weight. The aluminum spoke nipples feature a design that conveniently reduces the frequency with which the spokes need to be tightened. The wheels are fitted with the latest DUNLOP Geomax MX 3S tires, delivering maximum grip and […]

TRIPLE CLAMP

All KTM SX models feature top quality, CNC-machined triple clamps which have become a KTM trademark. The triple clamp has a precisely calculated stiffness and offset (22 mm offset for all models) to match the flex characteristics of the frame and fork. The result is a front end that all works in perfect harmony, contributing […]

SWINGARM

The KTM 450 SX-F’s one-piece swingarm, is manufactured using a gravity die-cast production process, for exceptional strength at the lowest possible weight. It offers a wide range of adjustment for the rear wheel, allowing for a shorter wheelbase on tighter twisty tracks, or a longer wheelbase for greater stability on longer, more choppy tracks. The […]

REAR SUSPENSION

All KTM SX models feature a WP XACT monoshock, which has been developed to work as a complete unit with the entire frame and swingarm architecture, as well as the linkage system and the WP XACT AER fork. It features high-quality machined and anodized components, which add a touch of class and give it appeal […]

FUEL TANK

All models in the KTM SX range are fitted with lightweight polyethylene fuel tanks. The shape of the fuel tank allows for slim ergonomics without compromise to the 7 liter fuel capacity. The filler cap has an inside thread that makes for easy and reliable closure.

FRONT SUSPENSION

All full-size KTM SX models are fitted with the super-lightweight WP XACT fork with AER technology and feature updated settings for 2020. It is a 48 mm USD air-sprung fork with separate functions in each fork leg, with damping functions on the right side and the air spring on the left. The left leg features […]

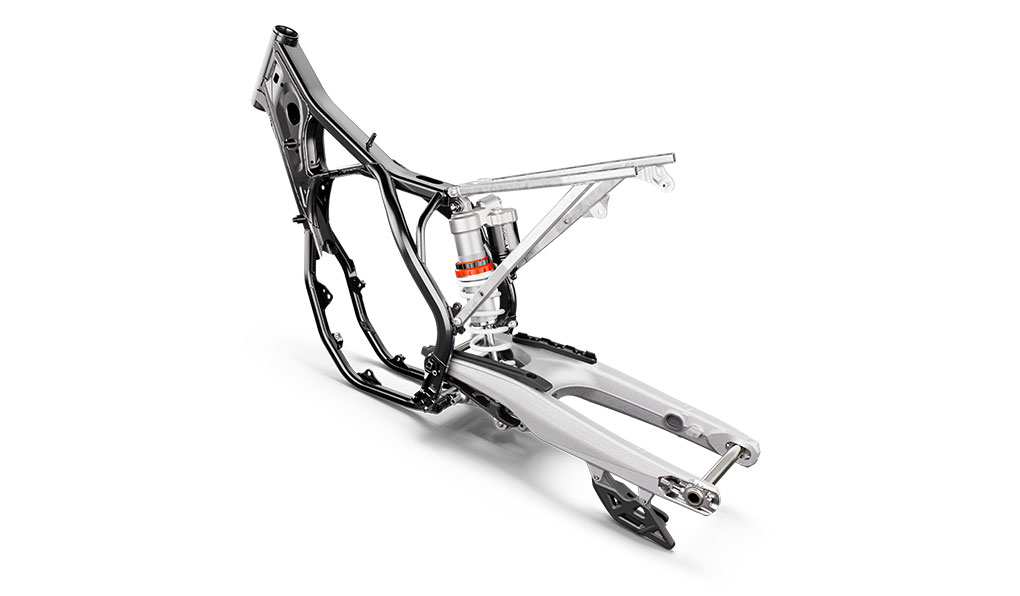

FRAME

As with the entire KTM SX range, the frame on the KTM 450 SX-F is professionally crafted from hydro-formed chromium molybdenum steel tubes that are robot welded to ensure the highest levels of consistent quality. The precisely calculated stiffness of the frame delivers responsive handling and works perfectly with the suspension to provide excellent agility […]

BRAKES

High-tech BREMBO brakes have always been standard equipment on all KTM motocross bikes. Combined with lightweight wave discs, the renowned system provides the highest level of braking efficiency, enabling you to out-brake the competition.

AIRBOX

The airbox on the KTM 450 SX-F ensures optimal flow dynamics, and together with its intake snorkels, leads to maximum power and quick throttle response. Despite the obvious performance advantages, the design also offers maximum protection against soiling of the air filter. The large Twin-Air air filter is mounted on a cleverly designed stiff cage […]

Ergonomi og komfort

Motor og Eksos

When it comes to the powerhouse of KTM’s SX range, it is imperative that riders are able to shift their weight quickly and easily to counter the forces acting against them. KTM places a great deal of emphasis on creating the optimal ergonomics for high-level performance, making sure the neutral riding position offers the best control. A rider’s main interaction with the motorcycle comes through the bodywork, seat, footpegs and handlebars and all these contact points play a vital role in balance and control. There is no doubt that the KTM 450 SX-F packs a serious punch and by ensuring the very best high-performance ergonomics, a rider has the confidence and control to use it as it is meant to be.

SEAT

All KTM SX models feature a seat that perfectly matches the range’s dynamic performance-oriented ergonomics. The seat cover features silicone strips that provide better feel and grip for the rider. The seat is conveniently fixed to the bike using one long, lateral screw, making it safe and easy to handle.

HANDLEBAR

All full-size KTM SX models are equipped with the same high-strength aluminum tapered handlebar, made by NEKEN. The handlebar is fixed in rubber damped mountings, which allow for two different positions. The handlebars come standard with an ODI vulcanized grip on the right side and a comfortable ODI lock-on grip, which does not require any […]

FOOTPEGS

Sophisticated ´no-dirt´ footpegs prevent clogging of the footpeg pivot, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the 2019 EXC models, which are 6mm higher than the SX versions.

Bodywork og dekaler

Motor og Eksos

Unloading a KTM 450 SX-F at the track is an immediate declaration of your race winning intentions. Using feedback from KTM factory riders, the bodywork of the entire SX range achieves complete harmony between bike and rider. The main focus is to provide contact points that allow maximum freedom of movement and improved overall handling. Brute strength at the lowest possible weight is what this bike is all about and can be seen in the details of the intelligent I-beam design on the front and rear fenders, which guarantee maximum stability at no extra weight.

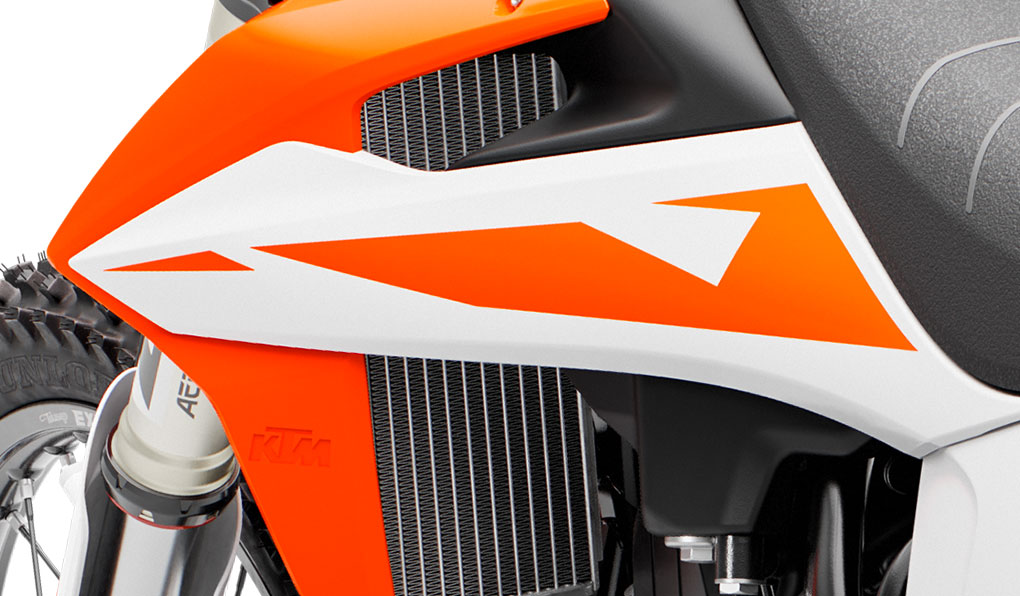

DECALS

The new aggressive-looking graphics were designed to send a clear message to the competition that this is not a bike that should be taken lightly.

Programvare og elektronikk

Motor og Eksos

With the KTM 450 SX-F producing a dirt ripping 63hp, every effort has been made to ensure the power is delivered in a controllable manner. Additional to the considerable mechanical effort to produce usable power, is an electronics package with the ability to refine it to perfection. Activated by a multifunctional handlebar map switch, the rider has access to important features like traction control, launch control and even alternative power curves. Many hours were spent in development, creating mind-blowing power and torque, making electronics a necessary innovation that ensures power gets to the ground in the most effective way. A proven electric starter gets this dirt-shredder fired up, ensuring the ultimate motocross experience starts with the simple push of a button.

TRACTION CONTROL

TRACTION CONTROL is a highly beneficial feature that guarantees more efficient traction and better control of the bike when accelerating on wet or slippery hard pack surfaces. It can be activated by the handlebar map switch during riding.

LAUNCH CONTROL

By pushing both buttons on the map switch, the rider can activate LAUNCH CONTROL, which ensures a more efficient launch out of the start gate. It reduces the maximum engine speed for the very first moment of the start to give better control. The EFI control lamp mounted on the upper triple clamps flashes when […]

HANDLEBAR MAP SELECT SWITCH

With one touch of a button, the map switch gives the rider the chance to select between a standard map setting and a more aggressive map for loamy, high grip dirt conditions. This is particularly useful for changing track conditions or for a rider that is looking for more control as he begins to fatigue.

BATTERY & WIRING HARNESS

All SX-F models feature a capable, super lightweight 2 Ah Lithium-Ion starter battery, ensuring quick and effective starting of the engine, especially in cold weather conditions. The voltage regulator and condenser, as well as all the electrical components are packaged in a common area below the seat, making the entire system compact and reliable.

Tekniske detaljer

TECH DETAILS

Engine
DISPLACEMENT
449.9 cm³
DESIGN
1-cylinder, 4-stroke engine
BORE
95 mm
STROKE
63.4 mm
STARTER
Electric starter
TRANSMISSION
4-speed
CLUTCH
Wet, DDS multi-disc clutch, Brembo hydraulics
EMS
Keihin EMS



CHASSIS
FRAME DESIGN
Central double-cradle-type 25CrMo4 steel
FRONT SUSPENSION
WP XACT-USD, Ø 48 mm
REAR SUSPENSION
WP XACT Monoshock with linkage
SUSPENSION TRAVEL (FRONT)
310 mm
SUSPENSION TRAVEL (REAR)
300 mm
FRONT BRAKE
Disc brake
REAR BRAKE
Disc brake
FRONT BRAKE DISC DIAMETER
260 mm
REAR BRAKE DISC DIAMETER
220 mm
CHAIN
5/8 x 1/4″
STEERING HEAD ANGLE
63.9 °
GROUND CLEARANCE
370 mm
SEAT HEIGHT
950 mm
TANK CAPACITY (APPROX.)
7 l
WEIGHT READY TO RACE (WITHOUT FUEL)
100 kg
