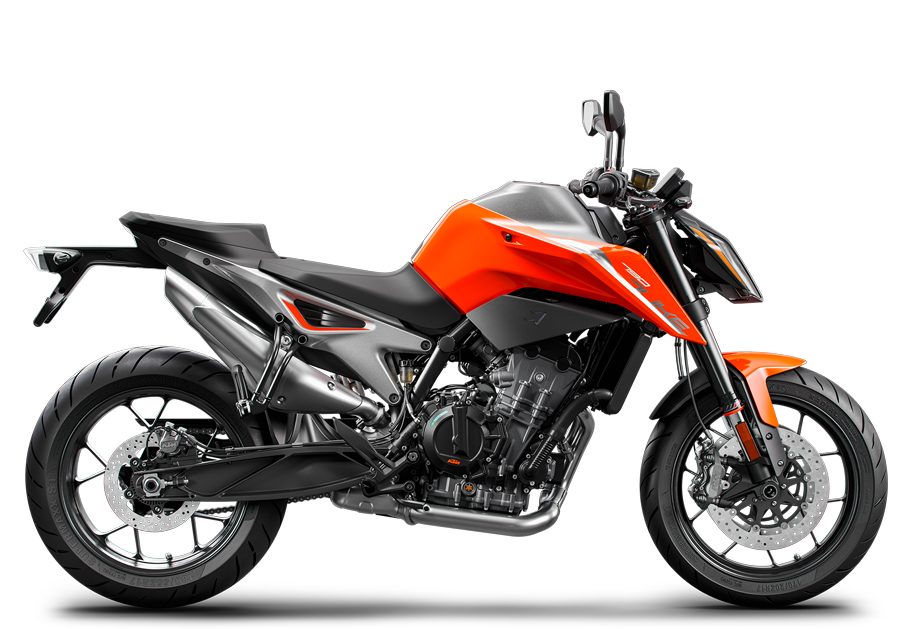

KTM 790 DUKE 2020

Produktinfo

THE SCALPEL

The KTM 790 DUKE is devastatingly accurate. The agility you’d expect from a single, blended with the meaty punch of a twin. It carves corners with pinpoint precision, boasting the 799 cc LC8c parallel twin motor nestled into one of the lightest and most compact chassis around. The KTM 790 DUKE is all about being fast where it counts – in the corners. Dynamically flicking from one bend to the next, putting you in the heart of the action and not on the sidelines.

Motor og eksos

Motor og Eksos

At the dark core of the KTM 790 DUKE lurks a compact 799 cc parallel-twin powerplant, just waiting to tear up a mountain pass or a short circuit. Boasting exceptional efficiency with class-leading power and torque, this engine is a lightweight force to be reckoned with.

RIDE-BY-WIRE

Instead of the electronic injection system’s throttle valves being controlled by cables, ride-by-wire processes throttle twist grip movements with the help of electronic sensors and activates the throttle valves accordingly using servo motors. However, our ride-by-wire on the KTM 790 DUKE goes the extra mile: It electronically translates the throttle commands of the rider into […]

PISTONS

Forged pistons with three piston rings, combined with a DLC (Diamond Like Coating) coated piston pin allow for lighter piston construction. This minimizes reciprocating weight, which reduces rotating masses, improving overall handling and maximizing the rev-ceiling of the engine.

PASC CLUTCH

The slipper clutch allows riders to enter corners confidently without locking up the rear wheel under hard deceleration or when downshifting, while remaining feather-light on the clutch finger.

OIL CIRCULATION

The engine employs a compact, semi-dry sump system with oil being actively pumped out of the crank case, clutch housing, and gearbox. This ensures any unnecessary oil flow through the motor, reducing power loss through friction. To cool down the oil, the engine is equipped with an oil cooler similar to that fitted to the […]

EXHAUST

A stainless-steel thing of beauty. The middle damper centralizes mass and allows for a relatively small muffler that plays a dramatic soundtrack. Hundreds of test bench runs and complex simulations ensured that this exhaust system contributes decisively to the tractable torque curve and excellent emission standards.

ENGINE

Built for torque, this liquid cooled 8 valve, DOHC unit delivers 87 Nm at 8000 rpm, almost immediately followed by a roaring 103 hp finale. Meanwhile, an advanced ride-by-wire system guarantees great refinement as well as low fuel consumption and emission figures.

CYLINDERS

Coated aluminum cylinders are an integral part of the sleeveless engine casing design of this 799 cc parallel twin. This open deck cylinder construction allows for optimal cooling, improved production tolerances and reliability.

CYLINDER HEAD

The 8 valve DOHC cylinder head contains twin chain-driven camshafts and one sparkplug per cylinder. Additionally, the camshafts in the790 DUKE are assembled, which makes them even lighter than forged camshafts. DLC coated finger followers, steel valves and a hydraulic chain tensioner complete the cylinder head assembly.

CRANKCASE

The KTM 790 DUKE features horizontally split crankcases, which are aluminum high pressure cast, allowing for reduced wall thickness and less weight.

BALANCER SHAFTS

No one enjoys unpleasant vibes. That is why the KTM 790 DUKE employs the use of balancer shafts placed in front of the crankshaft and in the cylinder head to ensure the smoothest power delivery and minimal vibration.

AIRBOX

The airbox sits snugly inside the subframe, with the air intake on the sides, allowing the bike to keep things cool while you gun it.

Chassi

Chassi

A large dose of the KTM 790 DUKE’s agility comes from the deftness of its lightweight chassis. While it uses its compact parallel twin engine as a structural and dynamic pivot point for quick responsiveness – it is the tubular steel frame, innovative cast aluminum subframe and swing arm that conspire with performance-oriented wheels, brakes and WP suspension to unleash a ride unlike any DUKE before it.

WHEELS

The KTM 790 DUKE is fitted with extremely lightweight, light-alloy wheels manufactured in a low-pressure die casting process. Not only do the lightweight wheels make the bike lighter overall, they also minimize the unsprung masses and moment of inertia, with a positive impact on the handling and ride dynamics.

TRIPLE CLAMPS

The cast aluminum triple clamp stiffness has been tuned to match the flex of the fork, contributing to the sporty handling and excellent feedback. Clever engineering of the triple clamps and the handlebar clamps mean four different handlebar positions are possible for that perfect riding position.

TIRES

The MAXXIS Supermaxx ST tires fitted to the KTM 790 DUKE have been developed specifically for this bike. Thanks to a special compound, the tires are grippy in both wet and dry conditions and strike a balance between sportiness and everyday rideability, offering the rider a stable ride and excellent tire wear.

SWINGARM

The die-cast, open-lattice swingarm is meticulously manufactured and has been optimized for stiffness and stability while still offering excellent flex characteristics. By using a direct link for the rear shock, complexity and parts are reduced.

SUBFRAME

The subframe is cast aluminum and houses the airbox. No plastic covers, no additional brackets – everything is cast into two connected pieces to reduce complexity and weight. The triangular shapes in the subframe were inspired by KTM’s trellis subframes, as this allows for a strong and simple construction.

STEERING DAMPER

This reliable and sensitive WP steering damper has been setup to give the rider ultimate feedback through the bars, while keeping the front wheel uncompromised over uneven tarmac. You won’t even know it’s there, until that one nasty bit of road comes up mid corner.

REAR SHOCK

Keeping the rear end on check is a state-of-the-art, gas assisted WP shock with progressive spring and preload adjustment. This ensures maximum traction while attacking a twisty ribbon of tarmac.

FRONT FORK

The 43 mm open cartridge upside-down fork from WP Suspension provides you with a set-up that’s unseen in this segment. The fork uses split function technology, which means compression and rebound damping take place in separate fork legs, allowing for better tuning of the fork behavior. The fork springs are progressive, ensuring a smooth operation […]

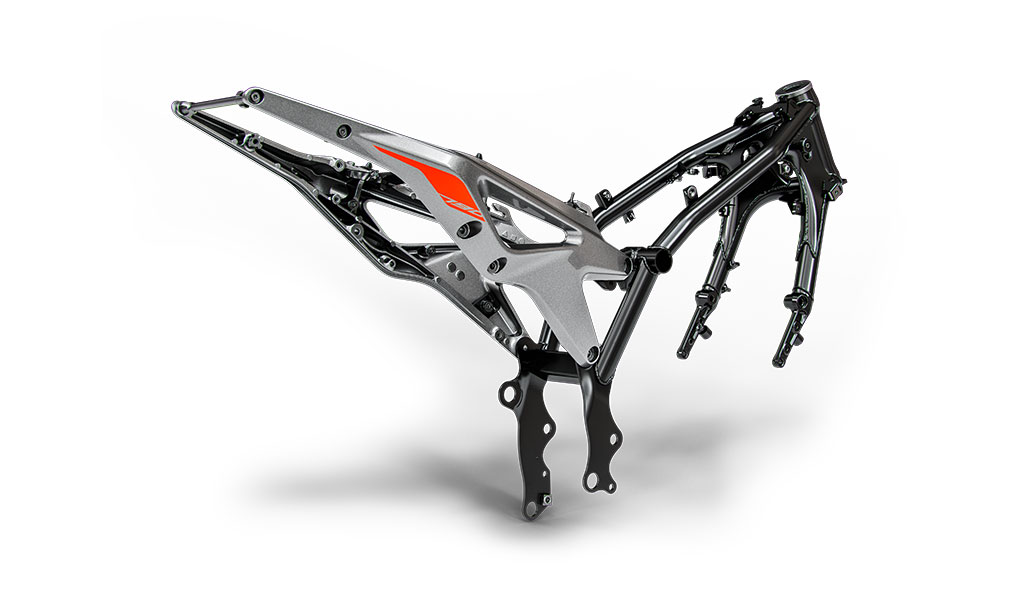

FRAME

When designers and engineers can start from a blank canvas, beauty meets performance. Take this chrome-molybdenum tubular frame, which makes a major contribution to the bike’s excellent chassis geometry, for example. It’s a laser-cut, robot-welded thing of beauty with a glorious surface finish. And it can count on the engine as a load bearing element, […]

BRAKES

Maximum deceleration is ensured at the front wheel on the KTM 790 DUKE by the two radially mounted four-piston fixed calipers and two 300 mm discs. The spacing between hand brake lever and handlebar is adjustable so that the lever is within easy reach for every rider. The front brake receives effective support from the […]

Ergonomi og komfort

Ergonomi og komfort

Designed to deliver confidence-inspiring control for a wide range of potential riders, the KTM 790 DUKE’s sleek body offers the ease-of-movement needed to effortlessly direct The Scalpel’s dynamic movements out on the ride, while still allowing fine adjustability for comfort – whatever your skill level.

SEATS

At 825 mm, both shorter and taller riders can enjoy the bike at full tilt, without losing sight of the daily usability. The seat cover is grippy but still allows the rider to move around the bike easily. It has been developed to work with textile and leather, in keeping with the wide range of […]

HANDLEBAR

A tapered aluminum, 760 mm wide handlebar puts you in full control. It’s adjustable, with 4 positions on the triple clamp and can be rotated in three further positions for that perfect riding position.

FOOTPEGS

Cast from aluminum, the foot pegs fitted to the KTM 790 DUKE cater to a comfortable riding position, while still creating maximum ground clearance allowing for impressive lean angles. Reverse (race) shifting is possible without any additional parts. Adjustable foot pegs are also available as a KTM PowerParts option for those who would like to […]

Bodywork og dekaler

Bodywork og dekaler

The hunkered-down aggressive stance of the KTM 790 DUKE is intimidating to all who cross its path. It clearly takes some of its design cues from the KTM 1290 SUPER DUKE R – most obvious being the unique headlight “face-mask”. Its distinctive sharp lines and compact 11/13 proportions are set off by signature KTM graphics, which leave no doubt as to its road-dominating intentions.

TFT DASHBOARD

A multicolor combination of relevant information, presented in an uncluttered way. As you rev the engine, the display bars change color, either spurring you on or warning you that the engine’s still cold. The display also automatically adapts its illumination to the ambient light and gets racy when “Track mode” is selected.

LED LIGHTS

Form and function are seamlessly integrated in the KTM 790 DUKE. Take the LED headlight for example, a highlight in this bike’s design. It combines optimal illumination of the near field with maximum light output. And the daytime running lights on both sides ensure that the motorcycle is perceived better and is more differentiated by […]

Programvare og elektronikk

Programvare og elektronikk

The KTM 790 DUKE might carry some muscle and grit, but it also comes with some serious brainpower as standard. Delivery of the 78 kW (105 hp) and 87 Nm is efficiently controlled by advanced electronics and next-generation rider aids. Even when you’re flirting with the limit, KTM’s combination of the most advanced software and electronics in the world of motorcycling allow you to easily select the level and degree of assistance needed to maximize your thrill factor out on any ride. All you have to do is focus on the road ahead – and hold on tight.

TRACK MODE

Track mode, as the name suggests, offers unlimited thrills and READY TO RACE characteristics. It features a launch control function for quick getaways, variable slip adjustment, increased throttle response and the ability to pull epic wheelies by disengaging Anti-Wheelie.

SUPERMOTO MODE

“Supermoto mode” allows enthusiastic and experienced riders to lock up the rear wheel – a prerequisite for committed supermoto riding and deliberately executed slides. This means ABS is deactivated on the rear wheel, while maintaining ABS function on the front.

RIDE MODES

Riders can choose from four ride modes, namely: “Sport” for more aggressive riding, “Street” for comfortable urban riding, “Rain” for when things get a little slippery, and the ultimate attack mode – “Track”. This gives KTM 790 DUKE pilots full power output, the ability to dial down the traction control, smooth out the throttle, switch […]

QUICKSHIFTER +

The KTM 790 DUKE allows for slick, clutchless up and downshifts thanks to KTM’s own Quickshifter+ system. It reads and responds to your riding under any load to ensure shift action is as fast as you are. When downshifting, the system matches the engine speed to the speed of the lower gear.

MOTORCYCLE TRACTION CONTROL (MTC)

Motorcycle Traction Control (MTC) is a mouthful, but it’s an important part of the KTM 790 DUKE. MTC is a lean-angle sensitive traction control system, which reduces engine output extremely smooth, barely perceptible. Depending on the selected ride mode, MTC also allows for several levels of traction slip at the rear wheel. But that’s not […]

MOTORCYCLE STABILITY CONTROL (MSC) WITH CORNERING ABS

A key component of the comprehensive BOSCH MSC assistance package is the lean-sensitive cornering ABS. In a nutshell, this means riders have increased confidence during hard braking, even at extreme lean angles.

MOTOR SLIP REGULATION (MSR)

The KTM 790 DUKE is equipped with standard MSR (Motor Slip Regulation), which works in the opposite direction of the MTC. This means there is no chance of accidentially locking up the rear wheel under downshifting or abrupt throttling-off. MSR ensures you retain full traction and complements the slipper clutch and is especially effective in […]

tilbehør

ACCESSORIES & LUGGAGE

You’ll find a full range of KTM PowerParts and luggage options available for the KTM 790 DUKE. Make aesthetic changes to intensify your ride, to reflect your personal attitude, fine-tune the function and adjust the performance to perfectly match your individual riding style. Wherever you ride and however you like to attack the turns, KTM PowerParts have you covered!

Tekniske detaljer

TECH DETAILS

Engine
Displacement
799 cm³
Power in KW
77 kW
Torque
87 Nm
Design
2-cylinder, 4-stroke, parallel twin
Bore
88 mm
Stroke
65.7 mm
Starter
Electric starter
Lubrication
Forced oil lubrication with 2 oil pumps
Transmission
6-speed
Cooling
Liquid cooled
Clutch
PASC™ antihopping clutch, mechanically operated
EMS
Bosch EMS with RBW
CO2 emissions
103 g/km
Fuel consumption
4.4 l/100 km
Chassis
Frame design
Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Suspension travel (front)
140 mm
Suspension travel (rear)
150 mm
Front brake
Four-piston radial fixed calliper
Rear brake
2 piston caliper, brake disc
Front brake disc diameter
300 mm
Rear brake disc diameter
240 mm
ABS
Two-channel Bosch 9.1 MP ABS (incl. Cornering ABS and Supermoto mode Disengegable)
Chain
520 X-Ring
Steering head angle
66 °
Ground clearance
186 mm
Seat height
825 mm
Tank capacity (approx.)
14 l
Dry weight
169 kg
