KTM 690 SMC R 2021

Produktinfo

STREET SLAYER

The KTM 690 SMC R raises the bar in the supermotos stakes, thanks in part to a lightweight chassis, a legendary 690 LC4 motor and a sohisticated electronics package. Whether you express your tarmac-sliding talent on mountain roads or on the apexes of your favourite track, you’ll be drifting into the future with a maxed-out grin and your veins coursing with adrenaline. Handling is enhanced by the latest fully-adjustable WP APEX suspension, so all you have to worry about is focusing on the road ahead and twisting the throttle to the stoppers.

Motor og eksos

Motor og Eksos

The LC4 690 cc single-cylinder engine combines powerful acceleration from the very lowest revs with an outstanding free-revving nature and refined engine running. Another big plus is besides the engine being extremely economical with fuel it also has long service intervals of 10,000 km, keeping running costs low.

Slipper clutch

Annoying rear wheel chatter? This is prevented by the slipper clutch that’s fitted as standard.

Ride-by-wire

The KTM 690 SMC R is equipped a ride-by-wire system, which processes throttle twist grip movements with the help of electronic sensors and activates the throttle valves to control throttle action. This significantly improves the response, giving the rider better throttle control of the potent single-cylinder and a smoother ride.

Resonator chamber

A resonator chamber balances out pulses in the intake tract and makes the throttle response smoother with reduced vibrations.

Piston

The lightweight and durable forged piston is designed to reduce reciprocating mass, and therefore improve engine response.

PASC CLUTCH

The PASC (Power Assist Clutch) ensures the rider needs minimal input to operate it, due to reduced engine torque transferring to the clutch plates. The slipper clutch prevents rear wheel lock-up under aggressive downshifting, which reduces destabilizing rear wheel chatter on the tarmac when braking sharply or decelerating into turns.

Injection / Engine Management

Electronic fuel injection and engine management allow performance perfectly suited to the riding conditions. The result: even more and even better controlled power, lower fuel consumption, and less emissions, plus the benefit of features like MTC (Motorcycle Traction Control), MSR (Motor slip regulation), and Quickshifter+. The rider has the choice between two different mappings to […]

Gearbox

The smooth 6-speed gearbox with Quickshifter+ allows quicker clutchless up and downshifts when you’re on the gas in and out of turns. This not only enables the rider to be more in control of the motorcycle by keeping a full grip of the handlebars, but also improves rear-wheel traction.

Exhaust

The exhaust system is made using high-quality stainless steel. It’s routed as close as possible to the bike to help with the slim profile, and the exhaust shape has been optimized for hard offroad usage. For 2021, the KTM 690 SMC R has some additional hardware, this comes in the form of a new specification […]

Cylinder head

A lightweight, compact cylinder head contains four valves and a single camshaft placed over the intake valves, and a secondary balancer shaft driven by the timing chain. The intake valves are actuated by finger followers and the exhaust valves by a rocker arm.

Conrods

Plain bearings are used in the conrod to ensure a reduced reciprocating mass, which helps the engine run smoother and therefore enhances its lively character.

Balancer shaft

Twin balancer shafts, one in front of the crankshaft and the other in the cylinder head reduce vibration, which ensures a smoother ride.

Airbox

Accessing the airfilter for maintenance is easy thanks to the airbox being located under the seat. This makes servicing the bike simple, and stress free, at the end of a long day’s ride.

Chassi

Chassi

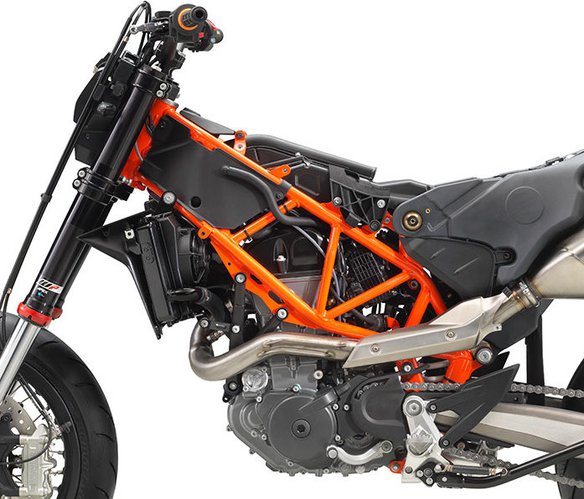

The trellis frame is manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of varying thicknesses. This type of balanced frame design provides high torsional rigidity for best handling and rideability, while a more specifically-tuned longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.

Wheels & tyres

The KTM wheels use lightweight, CNC machined hubs and high-end black 17″ rims to combine maximum strength with minimum weight. They are fitted with BRIDGESTONE S21 tires for maximum performance on the street, and plenty of grip for racetrack usage.

Triple clamp

Highly rigid forged triple clamps with an offset of 24 mm (adjustable to 22 mm), provide a solid grip on the forks for precise handling. They allow forwards and backwards adjustment of the handlebars in four different positions for optimum rider ergonomics.

Supermoto ABS

Supermoto ABS allows rear wheel lockup and reduced ABS on the front wheel for the hooligans who like to have more control over the motorcycle when pushing the limit through turns.

Subframe

Tried and trusted – the effective use of the rear fuel tank as the main structural element of the subframe, keeps weight low and eliminates design complexity.

RIDE MODES

Two ride modes (1) Street mode (2) Supermoto mode: “Street mode” for sporty throttle response where wheel slip and wheelies are kept to a minimum for optimal street performance. Two channel ABS functionality with ABS activated on the front and rear wheel is the standard setting for the ABS in Street mode. “Supermoto mode”, by […]

Rear Shock

The WP XPLOR shock absorber is specially tuned for Supermoto and is connected to the swingarm by a linkage. This ensures a progressive suspension character and a high resistance to bottoming out. Fully adjustable, including high and low-speed compression, you can set up the shock absorber to any circumstances and rider preference.

Quickshifter+

Quickshifter+ uses two sensors, where one sensor on the shift arm detects the movement on the shift lever rod when the rider upshifts and the system cuts the injection instantaneously. As soon as the second sensor detects the gear engagement it reapplies the injection and opens the butterfly valve, ensuring fast and smooth action at […]

MOTOR TRACTION CONTROL(MTC)

The MTC (Motorcycle Traction Control) lean-angle sensitive traction control system reacts immediately the instant the rear wheel rotation speed becomes disproportionate to the riding situation. In mere milliseconds MTC reduces engine output with an extremely smooth, barely perceptible intervention at the throttle valves, until slippage is reduced to optimum proportions for the selected ride mode […]

Lean Angle Sensor

A lean-angle sensor keeps track of the angle of the bike and sends the information to the ECU and relevant control units, which uses this data to adjust traction control and ABS actuation.

Fuel Tank

The KTM 690 SMC R features a 13.5 liter fuel tank which acts as a load-bearing part of the chassis, making it stiffer and gives the rider an optimal feel.

Front Fork

Maximum Super Moto control is enhanced by the WP APEX 48 upside-down fork. The split fork design developed by WP and KTM has been adapted for the KTM 690 SMC R. It is fitted with springs on both sides with separate damping functions – compression is on the left and rebound on the right-hand side. […]

Frame

The trellis frame is manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of varying thicknesses. This type of balanced frame design provides high torsional rigidity for best handling and rideability, while a more specifically-tuned longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.

Cornering ABS

KTM’s Cornering ABS mode allows riders to always use the full power of their brakes in all conditions, while taking the lean angle of the motorcycle into account. In Supermoto ABS mode, the ABS only act upon the front wheel, while cornering-sensitivity is disabled. For 2021 the KTM 690 SMC R benefits from a new […]

Brakes

The latest generation BREMBO M 4.32 Monoblock caliper is fitted to the front. It delivers class-leading stopping power that is combined with lightweight wave discs – 320 mm diameter front and 240 mm on the rear wheel – provide a crucial combination of stopping power and a consistent brake feel.

Ergonomi og komfort

Ergonomi og komfort

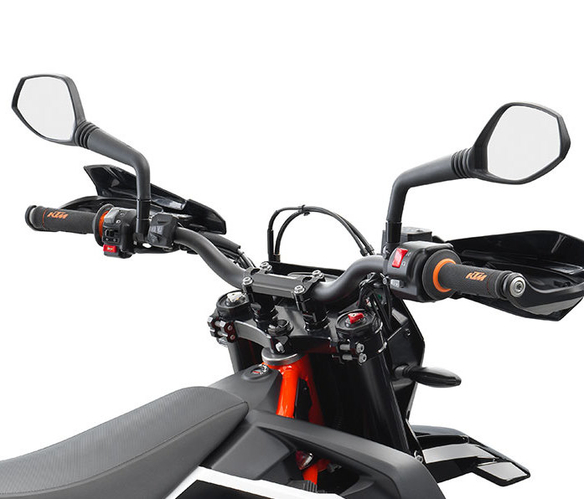

The lightweight tapered 808 mm wide handlebars are rubber mounted to reduce vibrations. Their width and shape are aimed at providing optimum control in all situations.

Slipper clutch

Annoying rear wheel chatter? This is prevented by the slipper clutch that’s fitted as standard.

Ride-by-wire

The KTM 690 SMC R is equipped a ride-by-wire system, which processes throttle twist grip movements with the help of electronic sensors and activates the throttle valves to control throttle action. This significantly improves the response, giving the rider better throttle control of the potent single-cylinder and a smoother ride.

Resonator chamber

A resonator chamber balances out pulses in the intake tract and makes the throttle response smoother with reduced vibrations.

Piston

The lightweight and durable forged piston is designed to reduce reciprocating mass, and therefore improve engine response.

PASC CLUTCH

The PASC (Power Assist Clutch) ensures the rider needs minimal input to operate it, due to reduced engine torque transferring to the clutch plates. The slipper clutch prevents rear wheel lock-up under aggressive downshifting, which reduces destabilizing rear wheel chatter on the tarmac when braking sharply or decelerating into turns.

Injection / Engine Management

Electronic fuel injection and engine management allow performance perfectly suited to the riding conditions. The result: even more and even better controlled power, lower fuel consumption, and less emissions, plus the benefit of features like MTC (Motorcycle Traction Control), MSR (Motor slip regulation), and Quickshifter+. The rider has the choice between two different mappings to […]

Gearbox

The smooth 6-speed gearbox with Quickshifter+ allows quicker clutchless up and downshifts when you’re on the gas in and out of turns. This not only enables the rider to be more in control of the motorcycle by keeping a full grip of the handlebars, but also improves rear-wheel traction.

Exhaust

The exhaust system is made using high-quality stainless steel. It’s routed as close as possible to the bike to help with the slim profile, and the exhaust shape has been optimized for hard offroad usage. For 2021, the KTM 690 SMC R has some additional hardware, this comes in the form of a new specification […]

Cylinder head

A lightweight, compact cylinder head contains four valves and a single camshaft placed over the intake valves, and a secondary balancer shaft driven by the timing chain. The intake valves are actuated by finger followers and the exhaust valves by a rocker arm.

Conrods

Plain bearings are used in the conrod to ensure a reduced reciprocating mass, which helps the engine run smoother and therefore enhances its lively character.

Balancer shaft

Twin balancer shafts, one in front of the crankshaft and the other in the cylinder head reduce vibration, which ensures a smoother ride.

Airbox

Accessing the airfilter for maintenance is easy thanks to the airbox being located under the seat. This makes servicing the bike simple, and stress free, at the end of a long day’s ride.

Bodywork og dekaler

Bodywork og dekaler

Developed on supermoto tracks and tested in a wide range of street riding scenarios, the all-new chassis handles superbly and behaves like a champion, no matter how far you push the limit. High-end equipment like WP APEX suspension the latest Brembo brakes will give you the control you need when pushing the limits.

Wheels & tyres

The KTM wheels use lightweight, CNC machined hubs and high-end black 17″ rims to combine maximum strength with minimum weight. They are fitted with BRIDGESTONE S21 tires for maximum performance on the street, and plenty of grip for racetrack usage.

Triple clamp

Highly rigid forged triple clamps with an offset of 24 mm (adjustable to 22 mm), provide a solid grip on the forks for precise handling. They allow forwards and backwards adjustment of the handlebars in four different positions for optimum rider ergonomics.

Supermoto ABS

Supermoto ABS allows rear wheel lockup and reduced ABS on the front wheel for the hooligans who like to have more control over the motorcycle when pushing the limit through turns.

Subframe

Tried and trusted – the effective use of the rear fuel tank as the main structural element of the subframe, keeps weight low and eliminates design complexity.

RIDE MODES

Two ride modes (1) Street mode (2) Supermoto mode: “Street mode” for sporty throttle response where wheel slip and wheelies are kept to a minimum for optimal street performance. Two channel ABS functionality with ABS activated on the front and rear wheel is the standard setting for the ABS in Street mode. “Supermoto mode”, by […]

Rear Shock

The WP XPLOR shock absorber is specially tuned for Supermoto and is connected to the swingarm by a linkage. This ensures a progressive suspension character and a high resistance to bottoming out. Fully adjustable, including high and low-speed compression, you can set up the shock absorber to any circumstances and rider preference.

Quickshifter+

Quickshifter+ uses two sensors, where one sensor on the shift arm detects the movement on the shift lever rod when the rider upshifts and the system cuts the injection instantaneously. As soon as the second sensor detects the gear engagement it reapplies the injection and opens the butterfly valve, ensuring fast and smooth action at […]

MOTOR TRACTION CONTROL(MTC)

The MTC (Motorcycle Traction Control) lean-angle sensitive traction control system reacts immediately the instant the rear wheel rotation speed becomes disproportionate to the riding situation. In mere milliseconds MTC reduces engine output with an extremely smooth, barely perceptible intervention at the throttle valves, until slippage is reduced to optimum proportions for the selected ride mode […]

Lean Angle Sensor

A lean-angle sensor keeps track of the angle of the bike and sends the information to the ECU and relevant control units, which uses this data to adjust traction control and ABS actuation.

Fuel Tank

The KTM 690 SMC R features a 13.5 liter fuel tank which acts as a load-bearing part of the chassis, making it stiffer and gives the rider an optimal feel.

Front Fork

Maximum Super Moto control is enhanced by the WP APEX 48 upside-down fork. The split fork design developed by WP and KTM has been adapted for the KTM 690 SMC R. It is fitted with springs on both sides with separate damping functions – compression is on the left and rebound on the right-hand side. […]

Frame

The trellis frame is manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of varying thicknesses. This type of balanced frame design provides high torsional rigidity for best handling and rideability, while a more specifically-tuned longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.

Cornering ABS

KTM’s Cornering ABS mode allows riders to always use the full power of their brakes in all conditions, while taking the lean angle of the motorcycle into account. In Supermoto ABS mode, the ABS only act upon the front wheel, while cornering-sensitivity is disabled. For 2021 the KTM 690 SMC R benefits from a new […]

Brakes

The latest generation BREMBO M 4.32 Monoblock caliper is fitted to the front. It delivers class-leading stopping power that is combined with lightweight wave discs – 320 mm diameter front and 240 mm on the rear wheel – provide a crucial combination of stopping power and a consistent brake feel.

Programvare og elektronikk

Programvare og elektronikk

Electronic fuel injection, ride-by-wire and the engine management system (EMS) make it possible to offer innovative yet easy-to-use electronic rider aids. These features can be selected, deselected and utilized to put the potent new-generation LC4 motor to effective use across a much wider range of streets, surfaces and conditions.

Wheels & tyres

The KTM wheels use lightweight, CNC machined hubs and high-end black 17″ rims to combine maximum strength with minimum weight. They are fitted with BRIDGESTONE S21 tires for maximum performance on the street, and plenty of grip for racetrack usage.

Triple clamp

Highly rigid forged triple clamps with an offset of 24 mm (adjustable to 22 mm), provide a solid grip on the forks for precise handling. They allow forwards and backwards adjustment of the handlebars in four different positions for optimum rider ergonomics.

Supermoto ABS

Supermoto ABS allows rear wheel lockup and reduced ABS on the front wheel for the hooligans who like to have more control over the motorcycle when pushing the limit through turns.

Subframe

Tried and trusted – the effective use of the rear fuel tank as the main structural element of the subframe, keeps weight low and eliminates design complexity.

RIDE MODES

Two ride modes (1) Street mode (2) Supermoto mode: “Street mode” for sporty throttle response where wheel slip and wheelies are kept to a minimum for optimal street performance. Two channel ABS functionality with ABS activated on the front and rear wheel is the standard setting for the ABS in Street mode. “Supermoto mode”, by […]

Rear Shock

The WP XPLOR shock absorber is specially tuned for Supermoto and is connected to the swingarm by a linkage. This ensures a progressive suspension character and a high resistance to bottoming out. Fully adjustable, including high and low-speed compression, you can set up the shock absorber to any circumstances and rider preference.

Quickshifter+

Quickshifter+ uses two sensors, where one sensor on the shift arm detects the movement on the shift lever rod when the rider upshifts and the system cuts the injection instantaneously. As soon as the second sensor detects the gear engagement it reapplies the injection and opens the butterfly valve, ensuring fast and smooth action at […]

MOTOR TRACTION CONTROL(MTC)

The MTC (Motorcycle Traction Control) lean-angle sensitive traction control system reacts immediately the instant the rear wheel rotation speed becomes disproportionate to the riding situation. In mere milliseconds MTC reduces engine output with an extremely smooth, barely perceptible intervention at the throttle valves, until slippage is reduced to optimum proportions for the selected ride mode […]

Lean Angle Sensor

A lean-angle sensor keeps track of the angle of the bike and sends the information to the ECU and relevant control units, which uses this data to adjust traction control and ABS actuation.

Fuel Tank

The KTM 690 SMC R features a 13.5 liter fuel tank which acts as a load-bearing part of the chassis, making it stiffer and gives the rider an optimal feel.

Front Fork

Maximum Super Moto control is enhanced by the WP APEX 48 upside-down fork. The split fork design developed by WP and KTM has been adapted for the KTM 690 SMC R. It is fitted with springs on both sides with separate damping functions – compression is on the left and rebound on the right-hand side. […]

Frame

The trellis frame is manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of varying thicknesses. This type of balanced frame design provides high torsional rigidity for best handling and rideability, while a more specifically-tuned longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.

Cornering ABS

KTM’s Cornering ABS mode allows riders to always use the full power of their brakes in all conditions, while taking the lean angle of the motorcycle into account. In Supermoto ABS mode, the ABS only act upon the front wheel, while cornering-sensitivity is disabled. For 2021 the KTM 690 SMC R benefits from a new […]

Brakes

The latest generation BREMBO M 4.32 Monoblock caliper is fitted to the front. It delivers class-leading stopping power that is combined with lightweight wave discs – 320 mm diameter front and 240 mm on the rear wheel – provide a crucial combination of stopping power and a consistent brake feel.

Tibehor

Tibehor

Developed on supermoto tracks and tested in a wide range of street riding scenarios, the all-new chassis handles superbly and behaves like a champion, no matter how far you push the limit. High-end equipment like WP APEX suspension the latest Brembo brakes will give you the control you need when pushing the limits.

Wheels & tyres

The KTM wheels use lightweight, CNC machined hubs and high-end black 17″ rims to combine maximum strength with minimum weight. They are fitted with BRIDGESTONE S21 tires for maximum performance on the street, and plenty of grip for racetrack usage.

Triple clamp

Highly rigid forged triple clamps with an offset of 24 mm (adjustable to 22 mm), provide a solid grip on the forks for precise handling. They allow forwards and backwards adjustment of the handlebars in four different positions for optimum rider ergonomics.

Supermoto ABS

Supermoto ABS allows rear wheel lockup and reduced ABS on the front wheel for the hooligans who like to have more control over the motorcycle when pushing the limit through turns.

Subframe

Tried and trusted – the effective use of the rear fuel tank as the main structural element of the subframe, keeps weight low and eliminates design complexity.

RIDE MODES

Two ride modes (1) Street mode (2) Supermoto mode: “Street mode” for sporty throttle response where wheel slip and wheelies are kept to a minimum for optimal street performance. Two channel ABS functionality with ABS activated on the front and rear wheel is the standard setting for the ABS in Street mode. “Supermoto mode”, by […]

Rear Shock

The WP XPLOR shock absorber is specially tuned for Supermoto and is connected to the swingarm by a linkage. This ensures a progressive suspension character and a high resistance to bottoming out. Fully adjustable, including high and low-speed compression, you can set up the shock absorber to any circumstances and rider preference.

Quickshifter+

Quickshifter+ uses two sensors, where one sensor on the shift arm detects the movement on the shift lever rod when the rider upshifts and the system cuts the injection instantaneously. As soon as the second sensor detects the gear engagement it reapplies the injection and opens the butterfly valve, ensuring fast and smooth action at […]

MOTOR TRACTION CONTROL(MTC)

The MTC (Motorcycle Traction Control) lean-angle sensitive traction control system reacts immediately the instant the rear wheel rotation speed becomes disproportionate to the riding situation. In mere milliseconds MTC reduces engine output with an extremely smooth, barely perceptible intervention at the throttle valves, until slippage is reduced to optimum proportions for the selected ride mode […]

Lean Angle Sensor

A lean-angle sensor keeps track of the angle of the bike and sends the information to the ECU and relevant control units, which uses this data to adjust traction control and ABS actuation.

Fuel Tank

The KTM 690 SMC R features a 13.5 liter fuel tank which acts as a load-bearing part of the chassis, making it stiffer and gives the rider an optimal feel.

Front Fork

Maximum Super Moto control is enhanced by the WP APEX 48 upside-down fork. The split fork design developed by WP and KTM has been adapted for the KTM 690 SMC R. It is fitted with springs on both sides with separate damping functions – compression is on the left and rebound on the right-hand side. […]

Frame

The trellis frame is manufactured from lightweight sections of top-quality chrome-molybdenum steel tubing of varying thicknesses. This type of balanced frame design provides high torsional rigidity for best handling and rideability, while a more specifically-tuned longitudinal flexibility can absorb the wheel impact energy, supporting the suspension for reduced rider fatigue.

Cornering ABS

KTM’s Cornering ABS mode allows riders to always use the full power of their brakes in all conditions, while taking the lean angle of the motorcycle into account. In Supermoto ABS mode, the ABS only act upon the front wheel, while cornering-sensitivity is disabled. For 2021 the KTM 690 SMC R benefits from a new […]

Brakes

The latest generation BREMBO M 4.32 Monoblock caliper is fitted to the front. It delivers class-leading stopping power that is combined with lightweight wave discs – 320 mm diameter front and 240 mm on the rear wheel – provide a crucial combination of stopping power and a consistent brake feel.

Tekniske detaljer

TECH DETAILS

Engine





Design
1-cylinder, 4-stroke engine
Displacement
692.7 cm³
Bore
105 mm
Stroke
80 mm
Power in KW
55 kW
Starter
Electric starter
Lubrication
Forced oil lubrication with 2 oil pumps
Transmission
6-speed
Cooling
Liquid cooled
Clutch
APTC(TM) slipper clutch, hydraulically actuated
EMS
Keihin EMS with RBW, twin ignition
CO2 emissions
90 g/km
Fuel consumption
4.1 l/100 km
Chassis
Frame design
Chrome-moly tubular space frame, powder-coated
Front suspension
WP APEX 48
Rear suspension
WP APEX with Pro-Lever linkage
Suspension travel (front)
215 mm
Suspension travel (rear)
240 mm
Ground Clearance
237 mm
Front brake
Brembo four-piston radial fixed calliper, brake disc
Rear brake
Single-piston floating calliper
Front brake disc diameter
320 mm
Rear brake disc diameter
240 mm
ABS
Two-channel Bosch 9.1 MP ABS (incl. Cornering ABS and Supermoto mode Disengegable)
Chain
X-Ring 5/8 x 1/4″
Steering head angle
63°
Seat height
892 mm
Tank capacity (approx.)
13.5 l
Dry weight
147 kg
