Produktinfo

THE ALPHA

The KTM 500 EXC-F is undoubtedly the most powerful competition enduro bike available. Its dominant power is tightly packaged in a cutting-edge chassis to keep things civilized, allowing riders to reign in all of its horses over the toughest terrain. All it takes is a twist of the throttle to realize that this in no ordinary big-bore enduro bike. It’s THE ULTIMATE big-bore competition enduro bike.

Motor og eksos

Motor og Eksos

There are many notable cutting-edge advancements in the single overhead camshaft motor in the 500 EXC-F. Compact dimensions, fuel injection, light weight and broad usable power – what more could you ask for from the most powerful 500cc mill in the business?

TRANSMISSION

The reliable 6-speed transmission features a special surface treatment on the 2nd, 3rd and 4th gears for solid reliability. The advanced ´No Dirt´ gear shift lever design prevents dirt from jamming the joint of the lever and guarantees precise shifting even in the muddiest conditions. All 4-stroke EXC-F engines are fitted with a gear position […]

EXHAUST

Noise limits are a real challenge for every manufacturer. Therefore, KTM has put a lot of effort into the development of its exhaust systems. All 4-strokes are fitted with a short high-end aluminum muffler, mounted as close to the engine as possible. This means more power, extra mass centralization and better rideability. An advanced internal […]

ENGINE MANAGEMENT SYSTEM

The state-of-the-art Keihin engine management system with electronic fuel injection features a 42mm throttle body. Thanks to its unique injector position, the engine’s response gives a whole new meaning to the word ‘instantaneous’. Separate circuits for cold-starting and idle make on-site adjustments easy. Push the throttle back when the engine is warmed up and the […]

E-STARTER

The KTM 500 EXC-F is fitted with a unique E-starter as standard, which is a clear advantage when it comes to crunch time in the heat of battle. A strong starter motor and a reliable lithium ion battery will fire up your 500 time and time again at the push of a button. In order […]

CYLINDER HEAD

A single overhead camshaft controls intake and exhaust through optimized ports, while a cutting-edge combustion chamber and water jacket create mind-blowing power while managing heat. The engine’s four valves rely on extremely rigid rocker arms. Double lateral brackets fix the engine to the frame and reduce vibrations.

CYLINDER AND PISTON

Inside the cylinder, with a bore of 95mm, thumps a forged box-type piston with an ultra-light piston pin. Its crown geometry is adapted perfectly to the combustion chamber, where its rigid structure and low weight shine. Thanks to low oscillating masses, the engine is as smooth as it’s powerful.

CRANKSHAFT

The KTM 500 EXC-F’s crankshaft utilizes a short connecting rod, which makes for an overall compact and lightweight engine with a snappy power delivery. A plain big (bottom) end bearing with two force-fitted bearing shells runs directly on the crank pin. The necessary oil feed for this bearing is ensured by the engine’s pressurized lubrication. […]

CRANKCASES AND ENGINE COVERS

The design of the die-cast crankcases allows for minimal weight and a very centralized shaft configuration. This makes the engine short and compact, while contributing to an efficient centralization of masses. The engine covers also feature a solid surface structure, which reduces the wear caused by the rider’s boots. This way, your EXC-F will keep […]

COOLING

KTM’s proven cooling system routes the coolant from the cylinder head through the frame triangle, directly to aluminum radiators made by WP. Thanks to flow optimized internal circulation and CFD-calculated ventilation, the system is superbly efficient. In addition, the radiator protectors improve heat dissipation. Especially in the mud. They are also integrated into the front […]

CLUTCH

The KTM 500 EXC-F employs the KTM-developed DDS clutch (damped diaphragm steel) with a wear-free steel basket and extremely heat resistant clutch plates and nitrated steel liners. This clever design employs a diaphragm spring instead of the usual coil springs, making for considerably easier clutch action. A diaphragm spring also leaves sufficient space for a […]

BALANCER SHAFT

To balance the mass forces, the KTM 500 EXC-F engine uses a multifunctional, side-mounted balancer shaft, which at the same time drives the water pump. It has been balanced to perfection, keeping vibration levels to a minimum, even while gunning it to the maximum.

Chassi

Chassi

For 2019, all KTM EXC-F models continue with their compact and lightweight approach. This now means the 500 EXC-F is not only the most powerful KTM dirt bike, but also the leanest, meanest 500 cc in its class.

WHEELS

The EXC-F’s wheels feature lightweight, CNC machined hubs and high-end Giant rims guaranteeing maximum stability at minimum weight. The wheels are fitted with MAXXIS tires – perfect for surefooted performance off-road and stability on-road.

TRIPLE CLAMP

The EXC-Fs are fitted with forged triple clamps with an offset of 22mm, ensuring a solid grip of the fork and precise handling. The handlebar is adjustable forwards and backwards over 4 positions, so the EXC-F will fit you like your favorite gloves.

SWINGARM

This state-of-the-art swingarm allows for an optimized mounting position of the PDS shock absorber, providing more progressive action. Furthermore, the cast aluminum design guarantees lower weight and a perfect flex behavior. The single-component casting process also eliminates any inconsistencies and weak points.

REAR SUSPENSION

The PDS is kind of a KTM trademark where the shock absorber is directly connected to the upper side of the swingarm. This setup boasts the best possible mounting geometry and provides amazingly progressive damping. The shock absorber is mounted close to the centerline, which means nearly symmetrical loads for the swingarm and frame and […]

FUEL TANK

The air filter box design offers maximum protection of the air filter against soiling, while ensuring maximum airflow in a quiet way. The large Twin Air filter is mounted in a stiff cage, which at the same time holds the system in place. This design is so simple; you can pop a fresh one in […]

FRONT SUSPENSION

The WP XPlor 48 upside-down fork is a split fork developed by WP in close collaboration with KTM. It is fitted with a spring on both sides but features separated functions for each fork leg: compression damping is fitted on the left side, while rebound is on the right. The forks can easily be adjusted […]

FRAME

The high-tech, lightweight chrome-moly steel frame has a knack for easy handling, outlandish rideability, precise cornering and excellent stability. You can also count on high torsional rigidity and low longitudinal stiffness. This results in better absorption of the energy created from the front and rear suspension, sucking up jumps and bumps. In short: more comfort […]

BRAKES

You can’t brake any harder, better, faster or stronger. High-tech Brembo calipers are combined with lightweight Wave brake discs. The steel-flex front brake hose has efficient protection and there’s an integrated channel for the speedometer cable. First you outrun them, then you outbrake them.

AIRBOX

The air filter box design offers maximum protection of the air filter against soiling, while ensuring maximum airflow in a quiet way. The large Twin Air filter is mounted in a stiff cage, which at the same time holds the system in place. This design is so simple; you can pop a fresh one in […]

Ergonomi og komfort

Ergonomi og komfort

READY TO RACE ergonomics developed over many years of offroad domination ensure 500 EXC-F pilots always have perfect maneuverability on the bike, while maintaining full control.

HANDLEBAR

KTM engineers know how to handle handlebars. This tapered unit, made of high-strength aluminum by NEKEN, features a throttle assembly with a robust aluminum body and easy free-play adjustment. An ODI volcanized grip sits on the right, while on the left side of the bar a comfortable ODI lock-on grip requires no glue or wire […]

FOOTPEGS

Sophisticated ´No Dirt´ footpegs prevent jamming up of the pegs, even when digging in deep ruts. The pegs on the EXC models are 6mm higher than the ones used on SX models, which benefits ground clearance. But you can swap them at will.

Bodywork og dekaler

Bodywork og dekaler

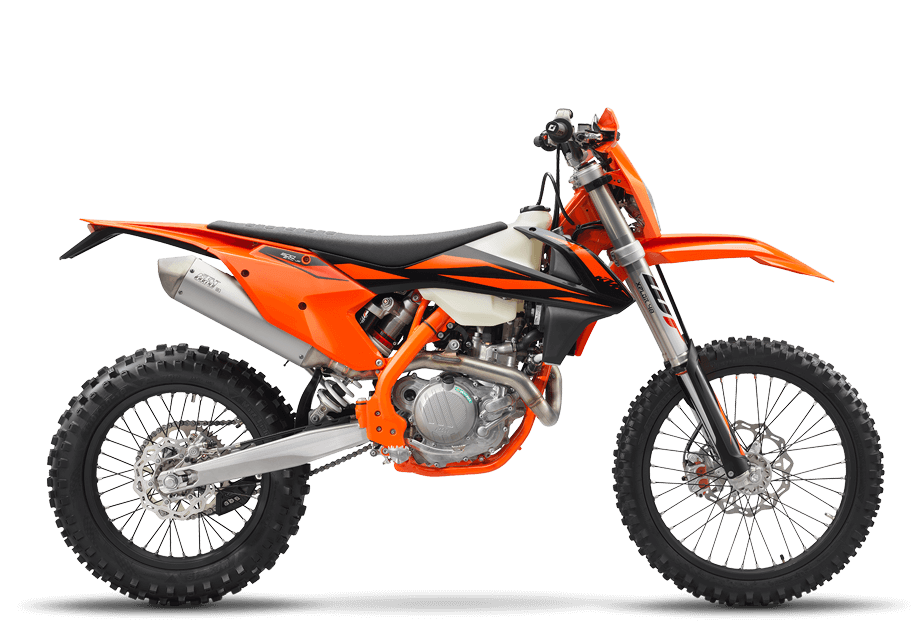

KTM R&D, KISKA Design and KTM factory racers have collaboratively shaped the plastics and decals on the 2019 KTM enduro range. The mandate was simple – create complete harmony between rider and bike, keep the weight down and ensure KTM’s READY TO RACE spirit is felt both on and off the bike.

DECALS

New graphics convey the READY TO RACE character of the 2019 KTM EXC-F model line.

Programvare og elektronikk

Programvare og elektronikk

The 500 EXC-F shares the same fuel injection and sophisticated traction control technology as the rest of the 2019 4-stroke weapons.

BATTERY & WIRING HARNESS

A strong lithium ion battery breathes life into the engine and contributes to low vehicle weight. The lightweight battery and wiring harness are centralized in a compartment above the air filter box, allowing the mechanic to remove the subframe without getting in conflict with the electronics. A happy mechanic is a good mechanic.

Tekniske detaljer

TECH DETAILS

Engine
Design
1-cylinder, 4-stroke engine
Displacement
510.4 cm³
Bore
95 mm
Stroke
72 mm
Starter
Electric starter
Transmission
6-speed
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
EMS
Keihin EMS
CO2 emissions
78.8
Fuel consumption
3.4
Chassis
Frame design
25CrMo4 steel central-tube frame
Rear suspension
WP Xplor PDS shock absorber
Suspension travel (front)
300 mm
Suspension travel (rear)
310 mm
Front brake
Disc brake
Rear brake
Disc brake
Front brake disc diameter
260 mm
Rear brake disc diameter
220 mm
Chain
X-Ring 5/8 x 1/4″
Steering head angle
63.5 °
Ground clearance
355 mm
Seat height
960 mm
Tank capacity (approx.)
8.5 l
Weight READY TO RACE (without fuel)
106.5 kg
